Security Overview
Introduction
Metallic® is the DPaaS (Data Protection as a Service) division of Commvault®, a worldwide leader in intelligent data protection. Built leveraging Commvault Intellectual Property (IP), Metallic delivers enterprise-grade backup with the simplicity of SaaS. With a hardened, multi-layered security approach, Metallic® SaaS Backup helps customers protect critical endpoints, SaaS applications, cloud and on-premises workloads now and in the future. The following is a summary; for a full description of Metallic security, features and functionality, and user terms and conditions, please see the associated user documentation.

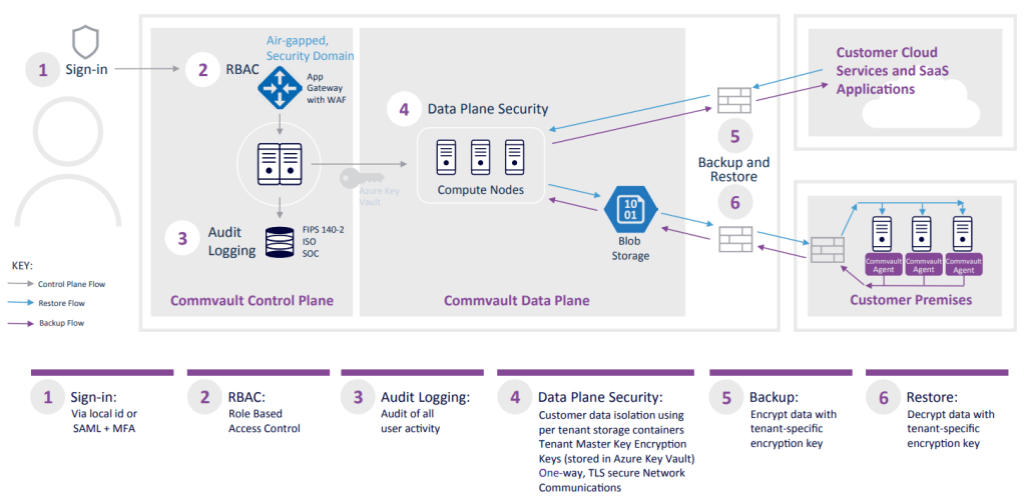

Metallic Architecture
Metallic is architected for scale and performance and separates the control plane and the data plane:
The control plane provides features and functionality such as backup job management, data restores,
tenant security administration, and more. The control plane runs in Microsoft Azure and provides a web-based interface for user access. Customer data itself does not flow through the control plane, minimizing network bandwidth requirements.
The data plane encompasses all features and functionality of data protection and management operations. It ensures that backup data flows can be optimized to protect and manage production data wherever it might reside – on-premises, public cloud or private cloud.
Storage
Metallic has several options for backup storage to help customers meet their RPO and RTO objectives:
- Metallic® Recovery Reserve™: Metallic offers fully-managed, cloud backup storage. Customers can set policies to place their backup data in specific cloud service provider regions helping meet data residency requirements. Unlimited Metallic Cloud Storage is included in Metallic® backup solutions for Microsoft 365, Dynamics 365, Salesforce, and Endpoints as part of the per user subscription costs.
- SaaS Plus: For hybrid-cloud workloads like Metallic® Database, Metallic® File & Object, and Metallic® VM & Kubernetes, Metallic offers unique storage target flexibility. Customers can leverage both cloud native storage and local backup copies in concert, for stronger data resiliency and recoverability, including:
- Bring Your Own Cloud Storage – customer cloud, such as Azure, OCI, or AWS
- Metallic® Recovery Reserve™ – cloud storage target that’s fully-managed by Metallic
- Bring Your Own On-Premises Storage – customer on-premises server via any disk or NAS device
- Hyperscale™ X – Commvault appliance, used for on-premises backup storage
Data Residency
Metallic® storage is included with Metallic® Backup solutions for Microsoft 365, Dynamics 365, Salesforce, and Endpoints and available as a standalone cloud backup storage target in Metallic® Recovery Reserve™. To provide high durability and availability. Metallic stores and synchronously replicates data among three availability zones in a primary region where the data resides. This provides a high level of resiliency, while ensuring data is never replicated outside specified regions to meet compliance with data residency requirements. For more information on data center regions and availability domains currently supported with Metallic, please see our documentation.
Immutability
Metallic leverages a hardened, multi-layered approach to data protection, providing robust controls that prevent various types of threats on backup data and ensures copies are highly recoverable from accidental deletion or malicious attack. Natively, all backup data is protected at the storage level. Backup copies and operations live in a virtually air-gapped location, in an isolated security domain, decoupled from source environments. Retention locks can also applied to prevent unwarranted modifications to data retention policies. Multi-factor authentication, dual AES 256 bit at-rest encryption, firewalls, and zero-trust access controls block internal and external movement of data by unauthorized parties. All security protocols employed adhere to security best practices and are based upon NIST 800-53, SOC2 type II, and ISO27001:2013 guidelines and compliance requirements.
Deduplication and Compression
Metallic’s compression and block-level deduplication improves network bandwidth utilization and reduces storage footprint. Cloud native storage APIs are used to efficiently send and retrieve data to the cloud when using cloud storage. Data deduplication enables further protection against data exfiltration and unauthorized usage as it is unreadable even after being decrypted without Metallic/Commvault proprietary deduplication engine.
Networking and Communications
All network communications are managed via TLS (mTLS) using TLS 1.2 connections. Certificate generation, revocation and renewal are automatically managed. Control connections from on-premises components to the Metallic service control plane are outbound only over port 443, minimizing the network access necessary to leverage Metallic. Connections to cloud storage also use HTTPS on port 443 outbound only. Data is always encrypted at source and in transit.
Application Security

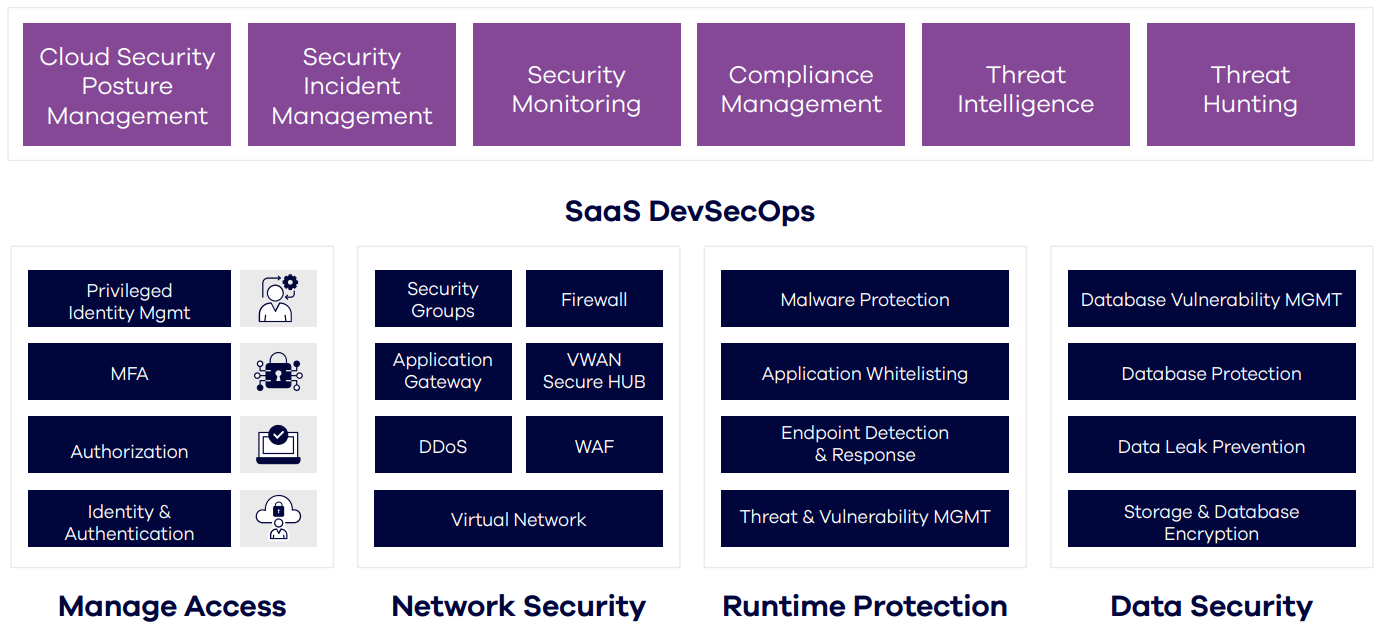

Metallic employs a DevSecOps approach to enhance end-to-end information and operational security. This includes following industry best practices to isolate test, dev, staging and production environments. Testing and review for security risks are performed regularly by both in-house and external third parties, including routine penetration testing, red team activities, vulnerability assessments and system and process audits.
Metallic service deployment uses layered security including firewalls, WAF and MFA to prevent any unauthorized and malicious access. Application Security assessments and vulnerability checks are regularly performed to maintain security hygiene and posture. Metallic also follows Open Web Application Security Project (OWASP) Top 10 best practices to secure web services and APIs, and maintains SOC2 Type II and ISO.IEC 27001:2013 certifications.

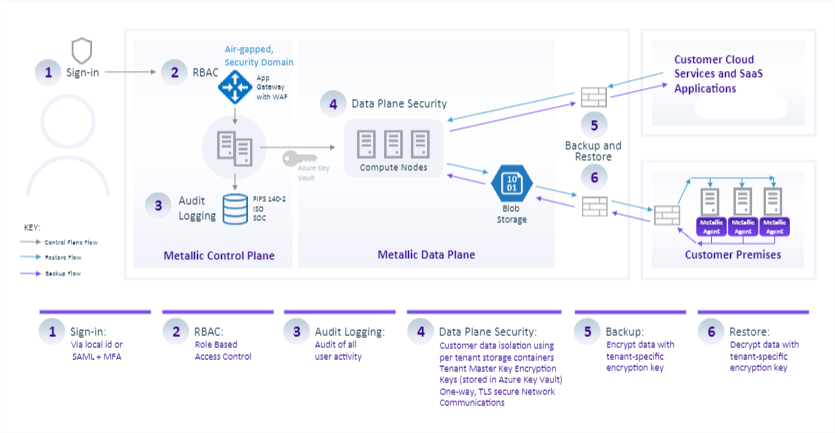

Metallic.io Security Architecture
Data Security
Separate Security Domain
Metallic leverages a 100% cloud-native architecture and maintains backup and restore operations outside of customer environments – in a separate security domain. One-way, TLS-encrypted secure tunnels, are used to secure storage targets, without a physical network connection. Air-gapping controls within the solution include the ability to turn off connectivity to data stores when not needed, effectively severing the data path and reducing the risk of successful ransomware attacks in production environments impacting backup copies.
Multi-Tenancy/Data Segregation
Metallic is a secure multi-tenant SaaS Platform with built in-segregation between tenants. Customer data is completely isolated and stored in separate locations, with unique data encryption keys per tenant. Metallic also leverages zero-trust access controls, only permitting data owners (customer) access through the Metallic Service.
Encryption
Encryption is an integral part of Metallic. All backup data is compressed, deduplicated, and encrypted by default from the source, on the network, and dual encrypted at rest using AES 256 bit encryption. During transport, data is encrypted with a tenant specific Data Encryption Key (DEK) before transferring the data across networks. Compression and deduplication also obfuscate data, providing additional security. Metallic crypto-graphic module is FIPS 140-2 certified.
Data Access
Customer data backed up within Metallic is encrypted and not accessible or readable by Commvault employees. Access to data stored within Metallic is solely subject to policies and authorized user permissions established and managed by the customer.
Data Owner Right to Delete Backup Data
Data that has been backed-up can be permanently deleted so that it is no longer available for browsing and recovery. Data can only be deleted/purged by users with appropriate access and permission. Once data has been securely deleted, it cannot be restored.
Key Management and Generation
Key management includes the ability to both generate random encryption keys for backup data and also manage the secure storage of these keys. To create the keys, Metallic uses CTR_DRBG, which randomly and dynamically generates keys via:
- Random 128-bit or 256-bit data encryption keys (DEK) for every client and storage policy copy combination, and initial vectors (IV) for CBC chaining during data encryption.
- Random 128-bit or 256-bit master key for the storage policy copy in absence of third-party key management server.
Metallic manages all encryption keys and follows best practices and procedures based on NIST Special Publication 800-57 as follows:
- Metallic generates a master key for each storage policy copy
- Metallic generates a pair of 3072-bit KEK (key encryption keys) RSA public-private keys:
- Uses a master key to encrypt the private portion of KEK.
- Uses the default key to encrypt the public portion of KEK.
- Metallic encrypts both the master key and RSA public-private key pair, and stores them in a secure lockbox.
Metallic uses AES Key Wrap Specification to securely encrypt and secure all keys with CRC32 embedded. Metallic also automatically rotates keys every 30-days, without user intervention.
Identity and Access Management
Access control is based on the Principle of Least Privilege and Zero Trust models in place designed to limit privileged and unauthorized access to both data and service infrastructure. We employ industry standard security best practices aligned to NIST 800-53 security guidelines for all access to our services with tight audit-controls managed via best-in-class security and DevSecOps tools, services, and processes
User Application Access
Passwords
Metallic supports SAML 2.0 and MFA authentication, allowing customers to implement their own password management controls and policies. Password complexity is enabled, requiring at least 12 characters, the use of three unique characters, and cannot contain more than two characters from the username. Password change frequency is 42 days, and at least three past password histories are logged. Metallic uses lockbox and vaults to secure customer passwords and credentials.
Logon Attempts
Administrators can limit the number of times a user can attempt to logon to Metallic. After the limit is reached, the user account is locked for the time period defined by the administrator. For more information, see Limiting User Logon Attempts.
Two-Factor Authentication
When Two-Factor Authentication is activated, users must enter a 6-digit PIN (Personal Identification Number) along with their passwords to access Metallic.
Role-Based Security
Metallic has built in Role Based Access Controls (RBACs) to restrict access to authorized users. A role is a collection of permissions administrators assign to users and entities to create a three-way security association. Roles can be assigned to grant appropriate access to any user or user group.
Integration with External Domains
Administrators can manage a single set of users through integration with external directory services like Active Directory and Oracle Directory. Metallic roles and entities can be assigned directly to an external group or user.
SAML Support
Metallic supports SAML authentication. SAML can be used to create a single identity for each user for a single sign-on logon for all applications. A SAML User Registration Workflow is available to create usernames.
Privacy
Metallic prevents users and administrators who are not client owners from seeing the data on the client. This includes Metallic employees and personnel, who do not have access to customer data.
Infrastructure Access
Physical Access
Metallic is a Software as a Service utilizing the cloud’s shared responsibility model, Metallic helps ensure all data and access to the data is secured, while leveraging the cloud service provider for perimeter and physical access controls.
Governance and Risk Management
Metallic is ISO27001:2013 and SOC 2 type II compliant, maintaining and implementing industry standard security and privacy policies aligned to NIST 800-53 security guidelines. Best-in-class cloud and SaaS service configuration management tools are employed to ensure any deviations from configurations detected are remediated automatically. All access is logged for audit and compliance reasons. Compliance with information security policies and procedures is strictly enforced and all Commvault’s employees receive training to ensure they remain aware of their role in maintaining the security, availability, and confidentiality of customer data among their other job responsibilities.
Audit Trail
Metallic audit trails allow customers to track user actions within Metallic services and can help in determining the root cause or source of operations performed within the environment. All changes are logged per Metallic SRE and DevSecOps requirements and follows SOC2 Type II and ISO27001:2013 compliances and standards.
Incident Response Plans
Metallic has a comprehensive Incident Response Plan (IRP) program, tested annually by a certified third party as part of our normal ISO and SOC2 certification requirements. Daily scanning is performed and procedures are tested through internal and external audits.
Business Continuity
Metallic Disaster Recovery (DR) procedures are based on the Commvault Business Continuity and Disaster Recovery (BCDR) policies. The DR procedures encompass all production services within Metallic, are well-established, reviewed every year, and continuously enhanced at scale to support our customers.
GDPR
When providing services, Metallic ensures compliance with specific GDPR requirements for data processors. When third parties are appointed to act as sub-processors, appropriate terms are in place to comply with the GDPR and safeguard customers’ data. Please see our GDPR Compliance page for more details.
FedRAMP High In Process – In PMO Review
Metallic Government Cloud, our portfolio of solutions for US government agencies and private businesses handling federal data, is currently the ONLY data protection solution to meet FedRAMP High In Process – In PMO Review status. Metallic Government Cloud incorporates 421 required security controls to meet the most stringent confidentiality, integrity, and availability standards set forth by the US government. Please visit our Metallic Government Cloud page for additional information.
Cyber Deception
Metallic® ThreatWise™ offers fully-integrated ransomware detection technology across our award-winning portfolio for pre-attack identification and containment. By precisely simulating real resources, ThreatWise decoys are indistinguishable and, when engaged, provide high-fidelity warning signals on active attacks in production environments – before data exfiltration, leakage, encryption, or damage. This helps neutralize silent attacks before they cause harm; detecting and diverting the stealthiest of zero-day attacks which evade conventional circumvent security controls. Please visit the Metallic® ThreatWise™ page for additional information.
Certifications and Compliance
For full list of certifications and standards met by Metallic, please visit the following webpage.
